AC Leak Detection in San Mateo, CA
Vacuum hold test catches the obvious. UV dye + electronic sniffer find the slow ones. We tell you exactly which seal, hose, or valve core is leaking before quoting parts.
An AC system that loses charge has a leak. Replacing parts at random is the most expensive way to fix it. Beacon Auto Care in San Mateo uses three complementary methods (vacuum hold test, UV dye, and an electronic sniffer) to isolate the leak before any part gets quoted.

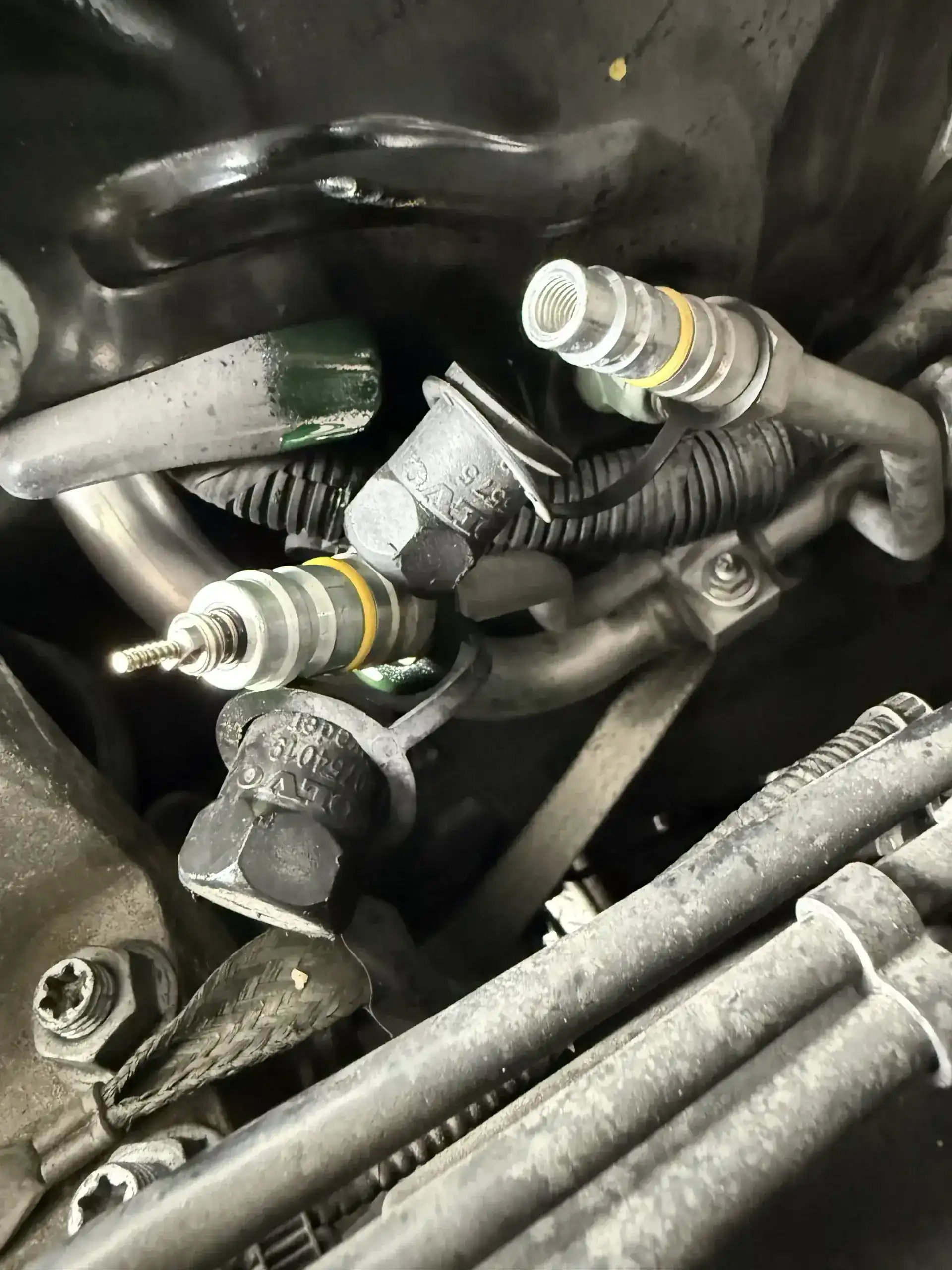

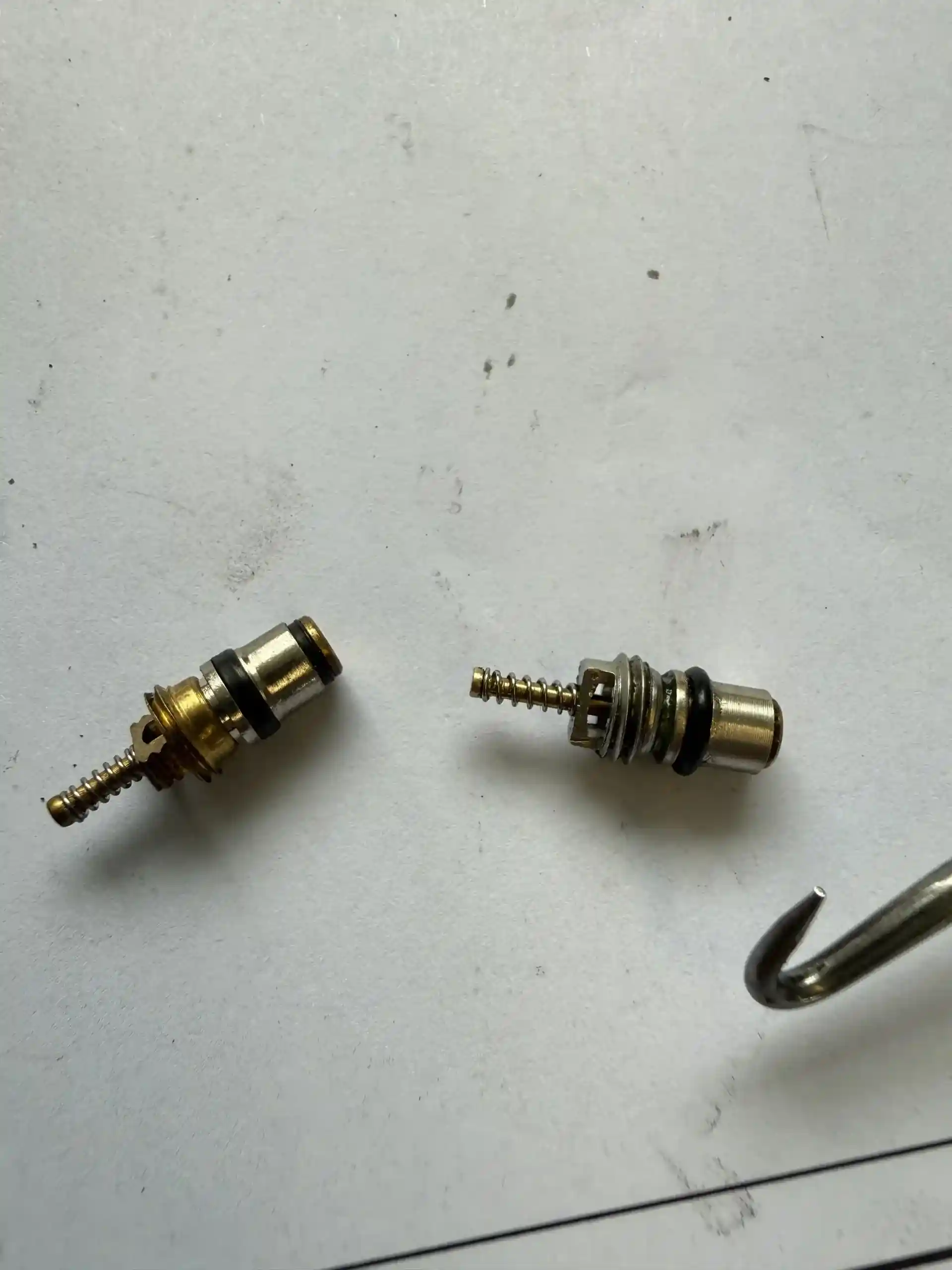

A recent Ford engine bay came in losing charge over a few months. Vacuum held briefly then dropped: leak somewhere. Sniffer test traced it to the AC service-port valve cores (Schrader valves) — the same kind of valve as a tire stem, except 30 years old and hardened. Old vs new core comparison: the original was visibly worn, with the o-ring compressed flat. Replaced both cores, $150 total. Vacuum-held overnight; recharged the next morning. The system has been holding ever since.
Detection Sequence
- Vacuum hold test: pull system to deep vacuum; watch the gauge for 30 minutes. Steady = no leak. Rising = leak.
- UV dye injection: small amount of fluorescent dye into the system. Run AC for ~15 minutes, then scan everything with UV light.
- Electronic sniffer: handheld refrigerant detector for hard-to-see locations (evaporator behind dash, deep engine bay).
- Identify and photograph the leak source for the customer.
Common Leak Sources (in order)
- O-rings at line junctions: cheapest fix ($150–$300)
- Condenser: front of car, vulnerable to rocks ($350–$650)
- Compressor shaft seal: $400–$800
- Hoses: $250–$550
- Evaporator: under the dash, most expensive ($1,400–$2,400)
- Three detection methods used as needed
- Photo of the leak source sent to your phone
- Itemized estimate before any repair
- 24-month / 24,000-mile warranty on parts and labor
Real AC Valve Stem Job: Recent Land Rover
Customer brought in a Land Rover with AC barely cooling. Vacuum-hold test held tight, but the low-side service-port valve stem was weeping refrigerant under pressure. $150 fix that's lasted past the 24-month warranty window on every car we've done it on. Here's the four-frame story.
Schrader Valve Inspection: Real Footage
Tight under-hood close-up showing the AC compressor pulley and Schrader-valve service-port fitting on a Ford engine. The same valve core that's the most common slow-leak source.
Common Questions About AC Leak Detection
How we find leaks, what they cost, what's worth fixing.
How do you find an AC leak?
Where do AC leaks usually happen?
How much does AC leak detection cost in San Mateo?
What's the most expensive leak to fix?
If my AC has been empty for years, can I just refill it?
